Designed in Britain and made in Europe, the all-new Centros is our most technologically advanced electric bike to date and it’s back with a sleek new look. Effortless power and timeless style come together to give you a luxurious ride that fits your lifestyle seamlessly.
Range Differences at a glance:
Centros | Centros Tour | Centros Grand Tour | |
£2,100 | £2,300 | £2,600 | |
Battery | 400Wh | 500Wh | 500Wh |
Motor | Bosch | Bosch | Bosch |
Display | Bosch Intuvia | Bosch Intuvia | Bosch Intuvia |
Gears | Shimano Deore 9 speed |
Deore 10 Speed | Nexus 8 Speed |
Drive | KMC e9 Speed Chain | KMC e9 Speed Chain | Gates Belt |
Weight | 26kg | 26kg | 26.5kg |
Brake Levers | Tektro T285 Hydraulic Disc | Shimano M315 Hydraulic Disc brake |
Shimano M315 Hydraulic Disc brake |
Tyres | Mitas 700c x 42 | Mitas 700c x 42 | Schwalbe Marathon 700c x 42 |
If you’re looking for a subtle, discreet and stylish electric bike then the Centros is the bike for you. The fully integrated 500WH battery from Bosch gives the frame a smooth finish and makes the design even more stunning. This battery is exclusive to our Centros range and is capable of delivering up to 225km of effortless performance from a single charge.
The Active Line plus motor has been re-engineered to offer an almost completely noise-free experience and can perform over 1,000 measures per second to help provide the optimum level of assistance throughout your ride. With a maximum power output of 270% of your pedal power, you’ll find that struggling up hills is a thing of the past. The luxurious Bosch Intuvia Display offers maximum clarity and convenience with a display screen in the centre of the handlebars for easy readability on the go and controls safely on the left handlebar.
The Centros has been designed to give the rider a luxurious experience on every ride with premium features such as the integrated front and rear lights keep you safe on your commute as well as a rear wheel lock added for security. Front suspension and a suspension seat post work in unison to provide a smooth riding experience enhanced by the world’s most comfortable saddle from Selle Royal. Disk brakes provide ultimate stopping power, and you’ll be prepared for any scenario with the bikes fully equipped design featuring mudguards, a kickstand and pannier rack.
Size Options
Standard Centros | Tour | Grand Tour | |
Sport | 48cm, 52cm, 56cm | 46cm, 53cm, 56cm | 48cm, 52cm, 56cm |
Comfort | 46cm, 50cm | 46cm, 53cm, 56cm | 46cm, 50cm |
Further Info

Raleigh Centros

Fully Integrated Battery
With the 500Wh battery fully integrated into the downtube, at a glance the Centros looks like any other bike. The advanced engineering has resulted in an extremely sleek and practical bike.

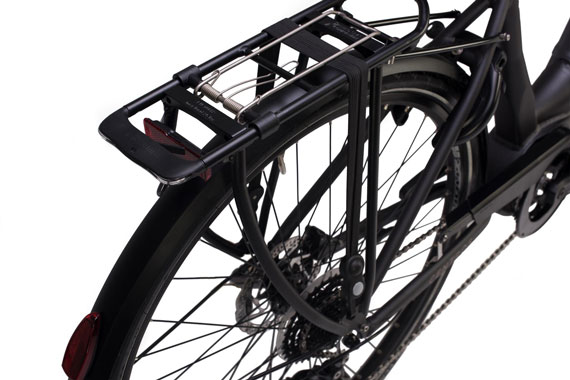

Rear Pannier
Looking for a commuter bike? Or are you out exploring trails and canal paths on the weekends?
The integrated pannier gives plenty of space for sandwiches, suits and supplies.


Intuiva Display
The Bosch display is integrated into the handlebars, giving clear read outs in a variety of light conditions.
Integrated Lights
Lights are integrated at the front and rear, providing constant brightness thanks to drawing power directly from the battery. Using high efficiency LED lights minimises power draw. The rear brake light automatically lights up when braking is detected by the Bosch system.
Suspension
The ride is smooth and luxurious thanks to a front suspension along with suspension in the seat post.


Derailleur or Hub Gears
Choose between a Nexus 8 speed Derailleur or hub gear system. The Hub Gear system is a closed unit to prevent ingress of dirt, dust and water - ensuring you can ride further without needing to worry about maintenance.

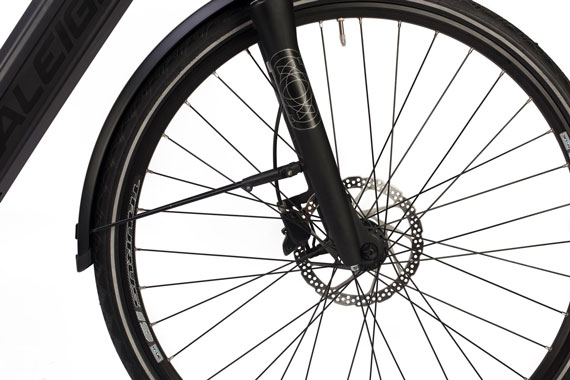

Disc Brakes
Shimano M315 hydraulic disc brake provide excellent stopping power when you need it, quickly dissipating energy and providing a confident ride.


Specification Table
Frame Type | Low Step |
---|---|
Wheel Size | 700c or 26" |
Frame | Alloy Lowstep frame AL6061 |
Approximate Weight | 26.5kg |
Suspension Fork | Suntour Nex suspension fork 63mm travel |
Headset | Low Stack semi integrated |
Shift Levers | Nexus 8 Speed |
Left Shift Lever | Bosch Intuvia Controller |
Brake Levers | Shimano M315 Hydraulic Disc brake |
Rear Derailleur | Nexus 8 Speed hub |
Cassette | Nexus 8 Speed Hub gear |
Chain | KMC Single Speed |
Pedals | Comfort Pedals with Anti Slip |
Rims | Black 36 hole disc brake compatible |
Tyres | CST ZEPPELIN 700C X 42 with reflective stripe & puncture protection OR CST C1698 559C X 47 with reflective stripe and puncture protection |
Stem | Adjustable angle Alloy |
Handlebars | Comfort XLC Handlebar Black |
Grips | Comfort Grip |
Saddle | Selle Royal Scienta R2 |
Seatpost | Alloy Suspension Seatpost 31.6 |
Seat Clamp | 34.9 mm Quick Release Alloy Clamp |
Mudguards | SKS Full Mudguards |
Chainguard | Chain guard for Bosch Gen 3 |
Rear Carrier | Racktime Alloy rack with integrated light |
Crankset | Raleigh Alloy BOSCH crank set |
Bottom Bracket | Bosch Integrated in motor |
Front Hub | Alloy 36 hole black disc QR |
Rear Hub | Shimano Nexus 8-speed disc |
Inner Tubes | 700 x 38c presta OR 26" x 1.5"presta |
Also Included | Kick Stand, charger |
Front Wheel | Alloy Double wall, 36 spoke, 700c on Alloy disc hub OR Alloy Double wall, 36 spoke, 26" on Alloy disc hub |
Rear Wheel | Double wall rim 36 hole 700c on Nexus 8 speed disc hub OR Double wall rim 36 hole 26" on Nexus 8 speed disc hub |
Front Brake | Shimano M315 hydraulic disc brake |
Rear Brake | Shimano M315 hydraulic disc brake |
Motor | Bosch Active Line Plus |
Battery | Bosch Power Tube 500Wh, 36V |
Display | Bosch Intuvia multifunctional display with operation unit & push-assistance |
Display Bracket | Bosch Intuvia Display holder |
Sensor | Bosch Speed Sensor |
Wiring Loom | Cable frame Battery 310MM |
Lighting | Trelock front light and integrated rear light |
